CPSC 352 -- Artificial Intelligence
Notes: Algorithms & Approaches: Neural Networks
Introduction
In this lecture we consider the basics of the neural network approach to AI.
It too involves some form of knowledge representation and search.
The neural network or connectionist approach is well suited for:
- Classification problems: Is this orange defective?
- Pattern recognition: Does that image contain a face?
- Memory Recall: Content Addressable Memory
- Prediction: Given these symptoms, the patient has disease X.
- Optimization: Find the shortest path for the TSP.
- Noise Filtering: Ignore the noise in a audio signal.

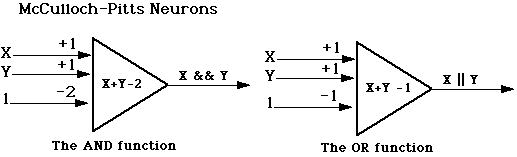

An Artificial Neuron
If the value of the neuron's activation is less than 0, it returns -1; otherwise
it returns +1.
Truth Table for the McCulloch-Pitts AND Function
| X | Y | X + Y - 2 | Output: X AND Y |
|---|
| 1 | 1 | 0 | 1 |
| 1 | 0 | -1 | -1 |
| 0 | 1 | -1 | -1 |
| 0 | 0 | -2 | -1 |
Connectionist Learning
Hebbian Learning (1949):
Repeated stimulation between two or more
neurons strengthens the connection weights among those neurons. One problem
with this model is it had no way to model inhibition between neurons.
A perceptron is a single-layer network that calculates a
linear combination of its inputs and outputs a 1 if the result is greater
than some threshold and a -1 if it is not:
Perceptron learning involves choosing values for its weights. It uses a
form of supervised learning. After attempting to solve a problem
instance, the perceptron is given the correct result. The perceptron then
changes its weights to reduce the error. By doing this for an entire set of
training data, the perceptron will minimize the average error over the entire
set.
Learning Algorithm
- If the desired and actual output are equal, do nothing.
- If the desired is +1 and actual is -1, increment the weight by 2cx.
- If the desired is -1 and actual is +1, decrement the weight by 2cx.
Minsky and Papert (1969) showed that if there is a set of weights that
give the correct output for an entire training set, a perceptron will learn it.
Example: Perceptrons can learn models for the following
primitive boolean functions: AND, OR, NOT, NAND, NOR. Here's an
example for AND:
Limitations of Perceptrons
Minsky and Papert (1969) showed that perceptrons could not model the exclusive-or
function, because its outputs are not linearly separable. Two classes of
outputs are linearly separable if and only if you can draw a straight line in
two dimensions that separates one classification from another.
It was known at the time (1969, by some researchers at least) that a multi-layer neural
network could learn the XOR function:
The key here is the hidden unit, which makes it possible for the network to
learn functions where the outputs are not linearly separable.

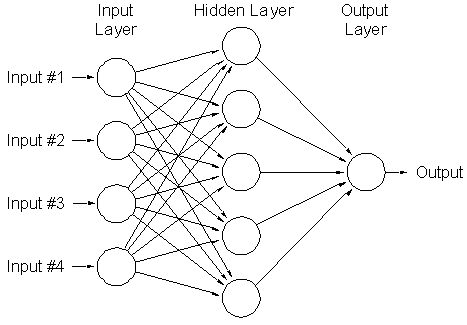

In general, functions whose outputs are not linearly separable can be represented by
multi-layer networks.
Backpropagation is a supervised learning algorithm for multi-layer networks.
Initialize the weights in the network (often randomly)
Do
For each example e in the training set
O = neural-net-output(network, e) ; forward pass
T = teacher output for e
Calculate error (T - O) at the output units
Compute delta_wh for all weights from hidden layer to output layer ; backward pass
Compute delta_wi for all weights from input layer to hidden layer ; backward pass continued
Update the weights in the network
Until all examples classified correctly or stopping criterion satisfied
Return the network
Connectionist Knowledge Representation and Search
Neural networks do not represent knowledge in terms of discrete symbols.
Instead knowledge, such as the AND function, is represented as a network
of neuronal-like elements. However, this does not eliminate knowledge
representation issues. It merely changes them: how many input elements
are needed? How many output elements? What should their weights be?
How many hidden elements?
Similarly, neural networks do not perform search in the traditional sense.
Nevertheless search is involved in learning algorithms, which can be viewed as
a search for appropriate weights from among the set of all possible weights.
The success of the search will be affected by the learning algorithm and
its parameters.
Homework Exercises
- Using the above conventions, design a McCulloch-Pitts neuron
for the NOR function with 2 inputs -- i.e., neither X nor Y is
true.
- Draw a truth table for the above XOR network to show that it
indeed represents the XOR function.
