Learning Objective 17: The student can appropriately connect problems and potential algorithmic solutions.
-- 17a. Identification of problems that can be solved in a reasonable time. -- 17b. Explanation of why heuristic approaches are necessary to solve some problems in a reasonable time. -- 17c. Explanation of how some problems cannot be solved using any algorithm.
Learning Objective 18: The student can evaluate algorithms analytically and empirically.
-- 18a. Evaluation of an algorithm's efficiency, correctness, or clarity. -- 18d. Explanation of how different correct algorithms for the same problem can have different efficiencies.
An algorithm's correctness refers to whether or not it contains errors. We will talk about testing procedures below.
An algorithm's clarity refers to how well it is expressed and described. Can you understand what it does and how it does it? We will begin using comments to document our code.
## Image here of a App Inventor comment
An algorithm's efficiency refers generally to how efficiently it uses two key resources, time and space -- i.e., the processor or central processing unit (CPU), and the computer's main memory, often called random access memory (RAM).
The faster the algorithm -- the quicker it finishes its task -- the more efficient it is with respect to time.
The less memory it uses, the more efficient it is with respect to space.
In discussing this topic we will talk about sorting and searching algorithms. A sort algorithm arranges data in some order -- e.g., numeric or alphabetic order. A search algorithm looks up some target data -- e.g., a name in the phone book. You can think of the data as being contained in a list.
Efficiency issues only come into play when there are large amounts of data. An algorithm's input size is often abbreviated with N. As N grows, the differences between efficient and inefficient algorithms become clear.
For example, this table shows the differences in running time in seconds for the same sort algorithm on different input sizes.
List Size, N Home Computer Desktop Computer 125 12.5 2.8 250 49.3 11.0 500 195.8 43.4 1000 780.3 172.9 2000 3114.9 690.5
Computer scientists like to abstract away the efficiency differences that are caused by different hardware and software -- e.g., faster vs. slower computer.
Here are some data obtained on different machines when sorting 2000 integers using the same algorithm:
Type of computer Time Home PC 51.915 Desktop PC 11.508 Minicomputer 2.382 Mainframe 0.431 Supercomputer 0.087
Empirical Analysis: The data in both of these tables were gathered empirically or experimentally -- i.e., by running and timing the actual program on different machines and inputs.
We can also analyze algorithm efficiently more abstractly, by comparing an algorithm to well known mathematical functions.

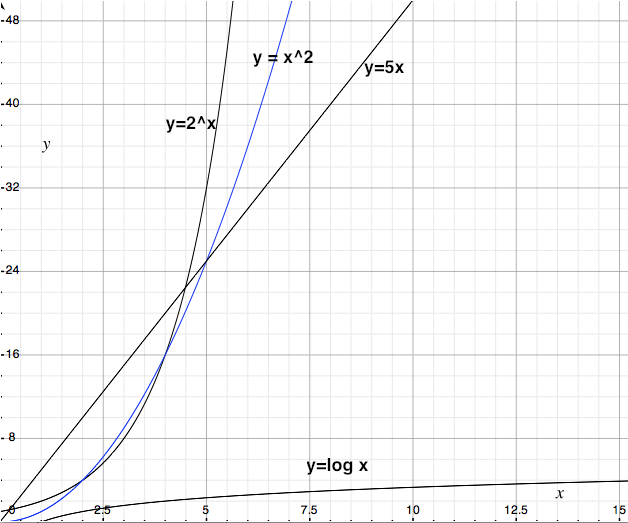

Consider the following graph with four functions : the logarithmic, linear, quadratic, and exponential functions:
- Logarithm function: y = log2 x
- Linear function: y = 5x
- Quadratic function: y = x2
- Exponential function: y = 2x
As you can see, as X increases, the running time increases. But look at the differences. Look at how slowly running time increases for the logarithmic function compared to the exponential function.
In terms of these four types of functions, we arrange the them in the following order in terms of how fast they increase as the size of, x, increases:
logarithmic << linear << quadratic << exponential log2 x << x << x2 << 2x
Computer scientists like to characterize algorithm efficiency in terms of how fast the running time will increase as the size of the inputs, n, increases.
To see the dramatic differences, consider some numbers for these for types of functions:
Inputs Algorithm Running Times
(seconds)n logarithmic
log2nlinear
nquadratic
n2exponential
2n8 3 8 64 256 16 4 16 256 65,536 32 5 32 1,024 4,296,967,296 64 6 64 4,096 1.84 x 1019 128 7 128 16,384 3.40 x 1038 256 8 256 65,536 1.15 x 1077 512 9 512 262,144 1.34 x 10154
So, for 512 input, a linear algorithm could perform some task in 512 seconds. Whereas an exponential algorithm would take 1.34 x 10154 seconds.
Computer scientists like to analyze problems by asking, what type of algorithm do we need to solve this problem? Or, what's the fastest type of algorithm that can solve this problem?
For example, to find the number 100 in the following lists of numbers, we would have to go through each number in the list, from left to right.
List 1 (16 numbers): (15 20 4 2 1 17 19 25 100 65 78 19 20 15 0 72) List 2 (16 numbers): (15 20 4 2 1 17 19 25 65 78 19 20 15 0 72 75)
We can use a linear search algorithm:
# Search for X in List L and return its Index, i, in L
# Or return -1 if X is not in the List
To Search for X in List L, DO:
Set and index, i, to 1
While i <= length(L) AND X != L[i] , DO: # Notation: L[i] means the item at index i in the list L
Set i = i + 1
If i <= length(L) THEN:
Return i
Else
Return -1
TODO: Hand trace this algorithm on List 1 and List 2 and count how many times you have to go through the loop.
Question: Suppose there 512 numbers in our list. In the worst case -- i.e., X is not in the list, how many times would we go through the while loop?
This algorithm (and the problem it solves) are said to be linear because in the worst case it takes N iterations of the loop to find something in a list of N items.
If our list were sorted -- e.g., like the telephone book -- then it wouldn't make sense to do a linear search -- i.e., start at page 1.
List 1 (16 numbers): (1 2 5 6 9 12 15 16 32 64 100 128 256 299 512 568) List 2 (16 numbers): (1 2 5 6 9 12 15 16 32 64 99 128 256 299 512 568)
Instead we could guess the approximate location of the number in the list and look there. In the most general case, we could guess that the X was the middle value in the list. If X was greater (or smaller) than the middle value, we would search the top (bottom) half of the list.
This is known as the binary search algorithm. For example, to guess a secret number between 1 and N:
Guess the middle value in the range 1..N If the guess is too high, cut off the top of the range. If the guess is too low, cut off the bottom of the range. Repeat until there's only 1 number left.
QUESTION: How many guesses to find the secret number between 1 and 100? Between 1 and 500?
You should be able to see that as N grows larger, the binary search will grow very slowly, like a logarithmic function.
Let's look at an example of an algorithm that performs like a quadratic function. Sort a list of N numbers from low to high using bubble sort.
List 1 (5 numbers): (10 5 4 4 1)
NOTE: Bubble sort is probably the world's worst sorting algorithm. And there are many sorting algorithms that are much more efficient. But here is bubble sort:
# Sort the N numbers in List L into ascending order
For a list of N items, repeat N-1 times. # N-1 steps
For each adjacent pair of items # N-1 pairs
If the pair is out of order, swap the numbers
This algorithm contains a nested loop. The outer loop repeats N-1 times. And on each repetition the inner loop does N-1 comparisons of adjacent numbers. So that is N2 - 2N + 1 comparisons. That's quadratic.
Clock analogy: Think of the relationship between the second hand and the minute hand on a clock. The second hand ticks 60 times each minute. To time 1 hour, the minute hand would tick 60 times, which is 3600 seconds.
TODO: Hand trace this algorithm on List 1 and count how many times you have perform the IF statement?
Question: Suppose there are 512 numbers in the list and it took 1 second to compare and swap a pair of numbers. Approximately how many seconds would it take to sort the list?
Bubble sort is an example of an in-place sorting algorithm.
It doesn't require much more memory than the list itself.
For example, for our original list, (10 5 4 4 1) and assuming that the numbers
range between 1 and 10:
Questions:
This shows that for a given problem, different algorithms can have
different efficiencies.
The Traveling Salesman Problem is an example of a
problem that can only be solved using an exponential algorithm.
Given N cities, find the shortest path (least costly path)
through all N cities.
The only known way to solve this problem is by brute force.
List all possible paths through the cities. For 3 cities we can
easily do this:
In general there are N! ways to arrange N cities. So there
are 3 × 2 × 1 = 6 ways to arrange 3 cities. And in general
N! is much greater than 2N:
Problems that can only be solved by exponential algorithms
are known as intractable problems. There is no general, optimal solution
for the traveling salesman problem.
There are heuristic solutions. A heuristic is a rule-of-thumb that
gives a pretty good (but not always optimal) solution. For the traveling salesman
problem we can use the nearest-neighbor heuristic -- i.e., select the
nearest neighboring city as the next city.
Theoretically speaking, not practically, are there problems that cannot, in principle,
be computed? We're not talking here about practical limits to computation.
The answer is "No". In 1936 British
Mathematician Alan
Turing proved that there is a set of problems that cannot be
solved by any algorithm or computational procedure.
Example: The
Halting Problem. Given a description of a computer program,
determine whether the program halts or continues running forever. In
other words, given a program and an set of inputs, decide whether the
program will eventually halt given that set of inputs.
Turing proved that there is no general algorithm that can solve the
halting problem for any program and any inputs.
We won't go into the details here, but it's important that you know
that computers do have this limitation.
Complete the following homework
assignment by Friday's class. There will be a quiz on Friday on
this material.
A Linear Sorting Algorithm
What if we didn't care about conserving space? How fast could we
sort N numbers?
# Sort the list of N numbers in List L in ascending order. Suppose
# the list contained numbers whose values ranged between 1 and M.
# For example the numbers might be between 1 and 1000.
(1) Make a list, LL, with M "buckets", each containg an empty list.
(2) For each of the N numbers in list L, put it in its proper bucket.
(3) Traverse through the list, LL, and empty the buckets back into the list, L.
(0) L = ( 10 5 4 4 1)
(1) LL = ( () () () () () () () () () () )
(2) LL = ( (1) () () (4 4) (5) () () () () (10) )
(3) L = ( 1 4 4 5 10 )
An Exponential Algorithm
A B C
A C B
B A C
B C A
C B A
C A B
N N! 2N 3 6 8 4 24 16 5 120 32 6 720 64 Computability
Homework
