Introduction

• Symbolic Representation + Recursive Search
• Neural Networks
• Genetic Algorithms

Illustration of Knowledge Representation

Exercise: Is this a search problem? How would you represent this problem abstractly? How would you solve this problem?.

The study of logic and computers has revealed to us that intelligence resides in physical symbol systems. This is computer science's most basic law of qualitative structure. Symbol systems are collections of patterns and processes, the latter being capable of producing, destroying, and modifying the former. The most important property of patterns is that they can designate objects, processes or other patterns, and that when they designate processes they can be interpreted...

A second law of qualitative structure for artificial intelligence is that symbol systems solve problems by generating potential solutions and testing them -- that is by searching. Solutions are usually sought by creating symbolic expressions and modifying them sequentially until they satisfy the conditions for a solution.

-- Newell and Simon, ACM Turing Award Lecture, 1976

The Physical Symbol System Hypothesis (PSSH)

• Symbol patterns represent significant aspects of a problem domain.
• Operations on these patterns generate potential solutions to problems.
• Search is used to select a solution from among the possible solutions.

Implication: A computer that plays checkers or chess, even if it uses a different search algorithm than we use, is displaying a form of intelligence.

Example: Samuel's checkers program, first introduced in 1956, eventually learned to beat Samuel's himself. Samuel's program contains an algorithm for assigning a score to the overall state of the board after each move. The score was based on 40 or so weighted features. The program's learning algorithm involved randomly adjusting the weights on the features and then playing a few games against a copy of itself with the new weights. Depending on which copy won, the other copy would be discarded.

Comment: That doesn't seem like a very "intelligent" learning algorithm, but it led to intelligent checkers playing.

Caveat: The PSSH is disputed by critics of AI and even by AI researchers who use the neural network or genetic algorithm approaches. Neural networks and GAs don't directly manipuluate symbols. And whereas high-level thinking, such as chess playing, logic appear to involve symbol manipulation, it doesn't seem to be involved in low-level cognition, such as vision. However, as we will see, both of these other approaches also require the use of knowledge representation and search.

SOAR. Newell's work led to the creation of the SOAR project, an attempt to develop a general cognitive architecture, based on representation and search, that is capable of exhibiting the full range of intelligent behavior.

The Church-Turing Thesis

• Computers are capable of implementing any effectively describable procedure.

• Everything computable is computable by a Turing machine.

Knowledge Representation

• Abstraction: Representing only what is necessary for a given purpose or task.

  • Miller's 7 plus or minus 2 Law: Human short term memory is capable of storing 7 plus or minus two chunks of information at one time. (But is it more like 3+1?

  • That's why we break phone numbers into chunks: 860-297-2220.

• Expressiveness: Can the representation express all the necessary information?

  • The Roman numeral system is expressive enough to represent all positive whole numbers: I, II, III, IV, V, VI, ...

  • The Arabic number system (a positional system) is expressive enough to represent all positive whole numbers: 1, 2, 3, ...

• Efficiency: Does the representation allow for efficient processing of information?

  • The Roman numeral system does not lead to very efficient algorithms for multiplication and division.

• Naturalness: Does the representation provide a natural framework for expressing the knowledge?

  • Representing real numbers in binary notation is a natural way to solve arithmetic problems on a computer.

Exercise: Calculate the product of XXVII and VIII and try to give a general description of a roman-numeral based multiplication algorithm.

AI Knowledge Representation

• Handle qualitative knowledge. Example: Representing a blocks world in terms of the blocks' x,y coordinates versus representing it in terms of the following predicates:
  • clear(c).
  • clear(a).
  • ontable(a).
  • ontable(b).
  • on(c,b).
  • cube(b).
  • cube(a).
  • pyramid(c).

• Allow representation of both specific facts and general principles

  Example: The above list is made up entirely of specific facts that describe a blocks world situation. The following PROLOG rule represents a general principle about the blocks world:

  clear(X) :- not(on(Y,X)).

  In English, this says, A block X is clear, if there is no block Y that is on X.

• Infer new knowledge from a set of facts and rules.

  Example: Given the general rule about when a block is clear, we could infer that block C is clear, since there is no block on C.

• Capture complex semantic meanings.

  Example: A car cannot be described merely by listing its parts. You must also describe its structure -- the relationships among its parts.

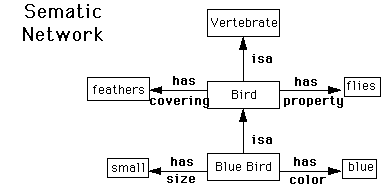

  Example: Semantic networks have been developed to represent of semantic meaning.



• Allow for meta-level reasoning.

  Meta-level reasoning refers to reasoning about what we know, including knowing what we don't know. For example, how do we know not to bother searching for Donald Duck's phone number in the telephone book? How would we get a computer to know this? Can we search for Donald Trump's phone number in the phone book? How does common sense reasoning figure into these questions?

  Semantic Paradoxes (e.g., the Liar's Paradox) Pretend the following shows both sides of a sheet of paper:

  The sentence on the other side of this paper is false.

  The sentence on the other side of this paper is true.

  Russell's Paradox: In Naive Set Theory: Let R be the set of all sets that are not members of themselves. Is R a member of itself? If so, it contradicts its own definition? If not, then it would count as a member of itself. Russell's theory of types invented the notion of meta-knowledge as a way of preventing these kinds of self-referential statement. Russell's example (1901) showed a contradiction in naive set theory:

Problem Solving as Search

• Playing tic-tac-toe.

• Proving a theorem.

• Looking up a name in the phone book.

• Diagnosing a medical illness or a car problem.

Heuristic Search

Example: In general, it takes N! operations to solve the Traveling Salesman Problem -- that is, to find the shortest possible path through N cities. An alternative to an exhaustive search is the Nearest Neighbor Heuristic: At each city, choose the nearest city as the next stop.

Homework Exercises

1. In what sense is a person's name an abstraction?

2. You are given two different length strings that have the characteristic that they both take exactly one hour to burn. However, neither string burns at a constant rate. Some sections of the strings burn very fast, other sections burn very slow. All you have to work with is a box of matches and the two strings. Describe an algorithm that uses the strings and the matches to calculate when exactly 45 minutes has elapsed.

3. Here's a Lewis Carroll favorite: A farmer needs to cross a river with his fox, goose, and a bag of corn. There's a rowboat that will hold the farmer and one other passenger. The problem is that the fox will eat the goose, if they are left alone, and the goose will eat the corn, if they are left alone. Develop a knowledge representation scheme and draw a portion of the search space.

4. Have you heard this one? A farmer lent the mechanic next door a 40-pound weight. Unfortunately the mechanic dropped the weight and it broke into four pieces. The good news is that according to the mechanic, it is still possible to use the four pieces to weigh any quantity between one and 40 pounds on a balance scale. How much did each of the four pieces weigh? ( Hint: You can weigh a 4-pound object on a balance by putting a 5-pound weight on one side and a 1-pound weight on the other.)

5. Show that the nearest neighbor heuristic is not optimal -- that is, it doesn't necessarily lead to the shortest possible path -- for a 5-city instance of the traveling salesman problem.
